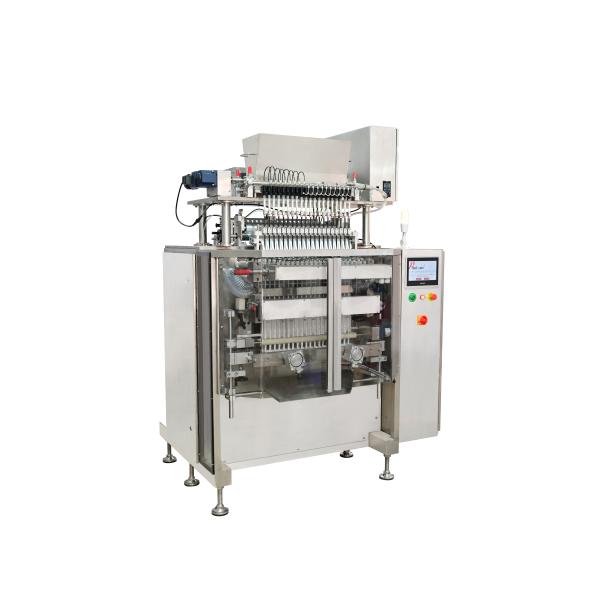

packaging machine (Host machine)

Technical parameter:

◇ Packaging material: oral smoke particles (by sample)

◇ Packaging capacity: 0.4-0.6g/bag Measuring accuracy: ≤±10%

◇ Packaging speed: 30-45 bags/min (single lane) * 20 lanes

◇ Bag making size: single lane: bag length: 20-50mm, pouch width: 13 mm, single lane film width: 30mm

◇ Packaging film width: 120mm

◇ Sealing form: back sealing without pattern, left and right overlapping

◇ Sealing width: vertical sealing width: 4mm horizontal sealing width: 5mm

◇ Horizontal sealing pattern: no pattern and mesh pattern 2 sets of heat sealers

◇ Cutting method: flat cutting and saw tooth cutting 2 sets of cutters

◇ Packaging material: composite packaging material, such as: BOPP/PE

◇ Power supply power: AC 220V/50HZ 3KW

◇ Gas source consumption: 6Kg, 0.6 m3/min

Basic configuration:

◇ Inovance 7' color touch screen + Inovance PLC (Chinese operating language), error prompt, self-diagnosis function, equipment operation lack of film, safety door open, equipment operation abnormality and other alarm functions, three-color alarm light

◇ Taiwan Airtac pneumatic components

◇ 6-way Omron temperature controller with temperature difference alarm

◇ Manual deviation correction system

◇ Debugging of automatic waste bag removal device

◇ Schneider or OMRON electrical components

◇ 20-lanes electric roller film separation

◇ Film feeding method: gravity active film feeding

◇ Horizontal seal bag pulling, Inovance servo motor control

◇ The part in contact with the material is made of stainless steel 304

◇ Quick film connection workbench

◇ Standard safety door switch (Panasoic door safety switch)

◇ Photoelectric function: None

◇ The frame, electrical box and the part in contact with the material are made of stainless steel 304 or aluminum alloy, which meets GMP requirements

◇ Dust removal device above the horizontal seal (including vacuum cleaner)

Metering device 1:

LG-20 20-lane horizontal screw metering device for dry particles

Technical parameters:

◇ Measuring range: 0.4-0.6g/bag

◇ Measuring method: horizontal screw

◇ Measuring accuracy: ±1-10% (depending on the characteristics of the filled material and the filling speed)

◇ Driving method: stepper motor

◇ Compressed air assisted blowing feeding device

◇ The silo is equipped with a rotating material breaking device to facilitate filling and ensure accuracy.

◇ 304 or aluminum alloy exterior parts, the parts in contact with materials are made of stainless steel 304

◇ Easy to disassemble and clean design

◇ Air source consumption: 6Kg, 0.8 m3/min

◇ Power supply: AC220V/50Hz, 0.4Kw

Measuring device 2:

TB-20 20-lane wet particle turntable metering device

Technical parameters:

◇ Measuring range: 0.4-0.6g/bag

◇ Measuring adjustment: adjustable measuring cup

◇ Measuring accuracy: ±1-10% (depending on the characteristics of the filled material and the filling speed)

◇ Driving mode: motor with divider

◇ Precision throttle valve controls auxiliary air blowing and unloading device

◇ The silo comes with a rotating material breaking device to facilitate filling and ensure accuracy.

◇ 304 or aluminum alloy exterior parts, parts in contact with materials are made of stainless steel 304

◇ Easy to disassemble and clean design

◇ Gas consumption: 6Kg, 0.8 m3/min

◇ Power supply: AC220V/50Hz, 0.4Kw
